Specifications
| title | TAFKP22K315SN |
| price | $ 4,214.69 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Inch |
| Brand | QM INDUSTRIES |
| Weight / LBS | 55 |
| Bore | 3.938 Inch | 100.025 Millimeter |
| EAN | 883450972642 |
| Other Features | Double Row | Extreme Duty |
| Relubricatable | Yes |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 4.13 Inch | 104.9 Millimeter |
| Cartridge Pilot Diameter | 10.375 Inch | 263.53 Millimeter |
| Cartridge Pilot Depth | 0.188 Inch | 4.775 Millimeter |
| Bolt Spacing | 6.44 Inch | 163.576 Millimeter |
| Nominal Bolt Circle Diameter Round | 12.9 Inch | 327.7 Millimeter |

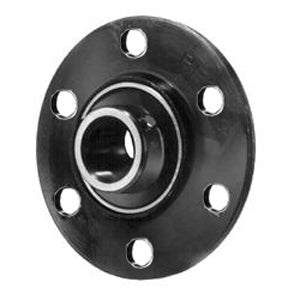

| Housing Style | 6 Bolt Round Flange Block |
| Number of Mounting Holes | 6 |
| Mounting Bolts | 1 Inch |
| Insert Part Number | 22222 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Viton |
| Pilot Configuration | With Pilot |
