Specifications

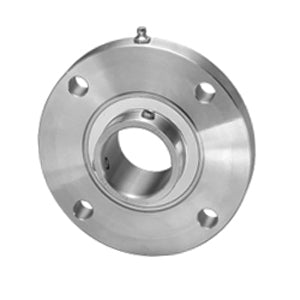

| title | SNASFCS 206 30MM |
| price | $ 280.45 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI |
| Inch - Metric | Metric |
| Brand | IPTCI |
| Bore | 1.181 Inch | 30 Millimeter |
| Other Features | Single Row | Corrosion Resistant | Stainless Steel Insert | Has Slinger |
| Global Part Number GPN | 556415 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.5 Inch | 38.1 Millimeter |
| Cartridge Pilot Diameter | 2.992 Inch | 76 Millimeter |
| Cartridge Pilot Depth | 0.236 Inch | 6 Millimeter |
| Bolt Spacing | 2.563 Inch | 65.1 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.6 Inch | 90.5 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/16 Inch |
| Insert Part Number | SNA206 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Stainless Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | B Seal |
| Pilot Configuration | With Pilot |
