Specifications

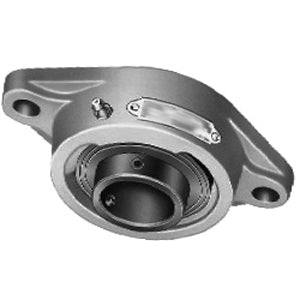

| title | SFT-208TM |
| price | $ 236.12 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Metric |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 4.3 |
| Bore | 1.575 Inch | 40 Millimeter |
| EAN | 662461242575 |
| Other Features | Single Row | Standard Duty | Skwezloc | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 16870 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.938 Inch | 49.225 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.657 Inch | 143.7 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.7 Inch | 144 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 14 Millimeter |
| Insert Part Number | 5208TM |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Pilot Configuration | No Pilot |
