Specifications

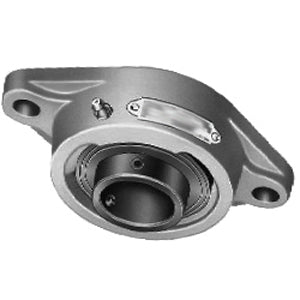

| title | SFT-204TM HI |
| price | $ 162.36 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Metric |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 1.3 |
| Bore | 0.787 Inch | 20 Millimeter |
| EAN | 662461297285 |
| Other Features | Single Row | Standard Duty | High Performance High Temperature | Skwezloc | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 553660 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.219 Inch | 30.96 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.531 Inch | 89.7 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.5 Inch | 90 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 10 Millimeter |
| Insert Part Number | 5204TM-HI |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Pilot Configuration | No Pilot |
