Specifications

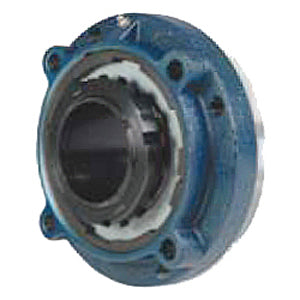

| title | SFCW2226-407N1 |
| price | $ 2,628.70 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | NTN |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 112 |
| Bore | 4.438 Inch | 112.725 Millimeter |
| EAN | 4547359652215 |
| Other Features | Double Row | Heavy Duty |
| Relubricatable | No |
| Global Part Number GPN | 553825 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 0 Inch | 0 Millimeter |
| Cartridge Pilot Diameter | 11.417 Inch | 290 Millimeter |
| Cartridge Pilot Depth | 1.654 Inch | 42 Millimeter |
| Bolt Spacing | 9.9 Inch | 251 Millimeter |
| Nominal Bolt Circle Diameter Round | 14 Inch | 355.6 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 23 Millimeter |
| Insert Part Number | MX-W22226BLLKC3 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | With Pilot |
