Specifications

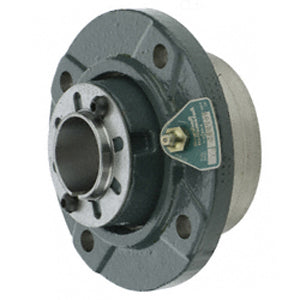

| title | SFCN-IP-215R |
| price | $ 1,300.51 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 9.08 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 20 |
| Bore | 2.938 Inch | 74.625 Millimeter |
| EAN | 0782476369385 |
| Other Features | Double Row | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 546607 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 3.5 Inch | 88.9 Millimeter |
| Cartridge Pilot Diameter | 6.375 Inch | 161.92 Millimeter |
| Cartridge Pilot Depth | 1.25 Inch | 31.75 Millimeter |
| Bolt Spacing | 5.3 Inch | 134.7 Millimeter |
| Nominal Bolt Circle Diameter Round | 7.5 Inch | 190 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | INS-IP-215R |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Contact |
| Pilot Configuration | With Pilot |
