Specifications

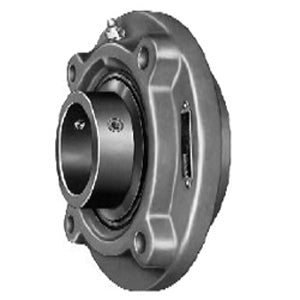

| title | SFC-206TM |
| price | $ 206.91 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Metric |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 3.2 |
| Bore | 1.181 Inch | 30 Millimeter |
| EAN | 662461253595 |
| Other Features | Single Row | Standard Duty | Skwezloc | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 19307 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.5 Inch | 38.1 Millimeter |
| Cartridge Pilot Diameter | 2.992 Inch | 76 Millimeter |
| Cartridge Pilot Depth | 0.236 Inch | 6 Millimeter |
| Bolt Spacing | 2.563 Inch | 65.1 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.6 Inch | 90.5 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 10 Millimeter |
| Insert Part Number | 5206TM |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Pilot Configuration | With Pilot |
