Specifications

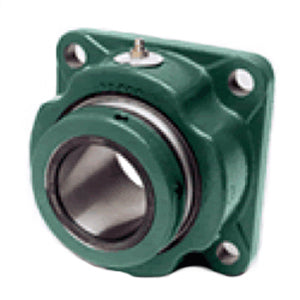

| title | SF4S-S2-112RE |
| price | $ 504.82 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 3.429 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 7.56 |
| Bore | 1.75 Inch | 44.45 Millimeter |
| Other Features | Double Row | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 546319 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.672 Inch | 67.869 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.891 Inch | 98.83 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.5 Inch | 140 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | INS-S2-112R |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Steel |
| Expansion / Non-expansion | Expansion |
| Seals | Triple Lip Contact |
| Pilot Configuration | No Pilot |
