DODGE

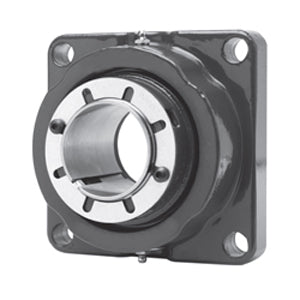

DODGE SF4S-IP-311RE

  • Write a review
  • FREE SHIPPING on orders over $100
    • $2,091.14 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title SF4S-IP-311RE
    price $ 2,460.17 / each
    Category Flange Block Bearings
    UNSPSC 31171501
    Harmonized Tariff Code 8483.20.40.80
    Manufacturer Name ABB MOTORS AND MECHANICAL INC
    Weight / kgm 17.77
    Inch - Metric Inch
    Brand DODGE
    Weight / LBS 39.14
    Bore 3.688 Inch | 93.675 Millimeter
    Other Features Double Row | Has Flinger
    Relubricatable Yes
    Global Part Number GPN 546298
    Mounting Method Adapter Sleeve
    Length Thru Bore 4.703 Inch | 119.456 Millimeter
    Cartridge Pilot Diameter 0 Inch | 0 Millimeter
    Cartridge Pilot Depth 0 Inch | 0 Millimeter
    Bolt Spacing 7.609 Inch | 193.269 Millimeter
    Nominal Bolt Circle Diameter Round 10.7 Inch | 272.8 Millimeter
    Housing Style 4 Bolt Square Flange Block
    Number of Mounting Holes 4
    Mounting Bolts 7/8 Inch
    Insert Part Number INS-IP-311R
    Housing Configuration 1 Piece Solid
    Housing Material Cast Steel
    Expansion / Non-expansion Expansion
    Seals Triple Lip Contact
    Pilot Configuration No Pilot
