Specifications

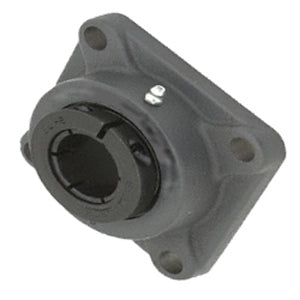

| title | SF-20T HS |
| price | $ 182.61 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 4.4 |
| Bore | 1.25 Inch | 31.75 Millimeter |
| EAN | 662461323199 |
| Other Features | Single Row | Standard Duty | High Speed | Skwezloc | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 558654 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.688 Inch | 42.87 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.625 Inch | 92.08 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.1 Inch | 130 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 17/32 Inch |
| Insert Part Number | 2-14T-HS |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Pilot Configuration | No Pilot |
