FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

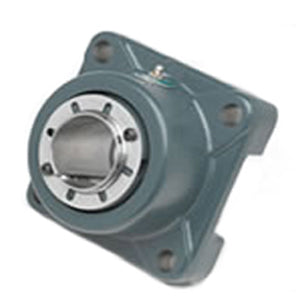

| title | SEF4B-IP-203R |
| price | $ 647.33 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 8.147 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 17.96 |
| Bore | 2.188 Inch | 55.575 Millimeter |
| Other Features | Double Row | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 546557 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 3.03 Inch | 76.962 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 4.875 Inch | 123.825 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.9 Inch | 175.3 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | INS-IP-203R |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Contact |
| Pilot Configuration | No Pilot |
