Specifications

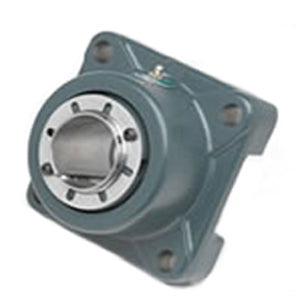

| title | SEF4B-IP-114R |
| price | $ 699.30 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 5.28 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 11.62 |
| Bore | 1.875 Inch | 47.625 Millimeter |
| Other Features | Double Row | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 546563 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 2.86 Inch | 72.644 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 4.375 Inch | 111.13 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.2 Inch | 157 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | INS-IP-114R |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Contact |
| Pilot Configuration | No Pilot |
