IPTCI

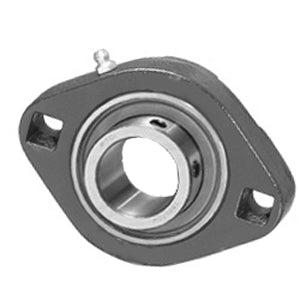

IPTCI SBLF 203 17MM N

  • Write a review
  • FREE SHIPPING on orders over $100
    • $24.91 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title SBLF 203 17MM N
    price $ 29.31 / each
    Category Flange Block Bearings
    UNSPSC 31171501
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name IPTCI
    Inch - Metric Metric
    Brand IPTCI
    Weight / LBS 0.6
    Bore 0.669 Inch | 17 Millimeter
    Other Features Single Row | Narrow Inner Race
    Relubricatable No
    Global Part Number GPN 547782
    Mounting Method Set Screw
    Length Thru Bore 0.866 Inch | 22 Millimeter
    Cartridge Pilot Diameter 0 Inch | 0 Millimeter
    Cartridge Pilot Depth 0 Inch | 0 Millimeter
    Bolt Spacing 2.5 Inch | 63.5 Millimeter
    Nominal Bolt Circle Diameter Round 2.5 Inch | 64 Millimeter
    Housing Style 2 Bolt Flange Block
    Number of Mounting Holes 2
    Mounting Bolts 1/4 Inch
    Insert Part Number SB203N
    Housing Configuration 1 Piece Solid
    Housing Material Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals K Seal
    Pilot Configuration No Pilot
