Specifications

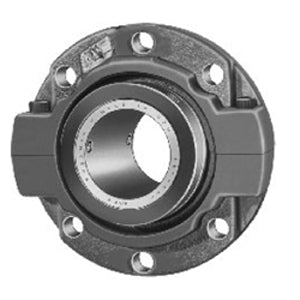

| title | RFPA 408C |
| price | $ 4,504.54 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 91 |
| Bore | 4.5 Inch | 114.3 Millimeter |
| EAN | 662461350447 |
| Other Features | Double Row | Heavy Duty | Single Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 553248 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 5.5 Inch | 139.7 Millimeter |
| Cartridge Pilot Diameter | 10.25 Inch | 260.35 Millimeter |
| Cartridge Pilot Depth | 2.38 Inch | 60.452 Millimeter |
| Bolt Spacing | 0 Inch | 0 Millimeter |
| Nominal Bolt Circle Diameter Round | 11.8 Inch | 300 Millimeter |
| Housing Style | 6 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 6 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | RCIA-408-C |
| Housing Configuration | 2 Piece Split |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | With Pilot |
