Specifications

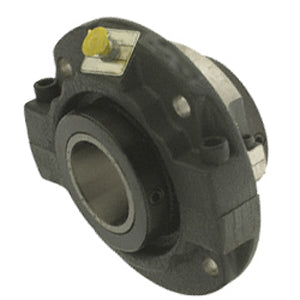

| title | RFPA 215 |
| price | $ 1,119.60 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 12.122 |
| Inch - Metric | Inch |
| Brand | SEALMASTER |
| Weight / LBS | 26.7 |
| Bore | 2.938 Inch | 74.625 Millimeter |
| EAN | 0662288483595 |
| Other Features | Double Row | Heavy Duty | Single Collar | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 13038 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.69 Inch | 93.726 Millimeter |
| Cartridge Pilot Diameter | 6.375 Inch | 161.92 Millimeter |
| Cartridge Pilot Depth | 1.56 Inch | 39.624 Millimeter |
| Bolt Spacing | 5.3 Inch | 134.7 Millimeter |
| Nominal Bolt Circle Diameter Round | 7.5 Inch | 190 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | RCIA-215 |
| Housing Configuration | 2 Piece Split |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Pilot Configuration | With Pilot |
