Specifications

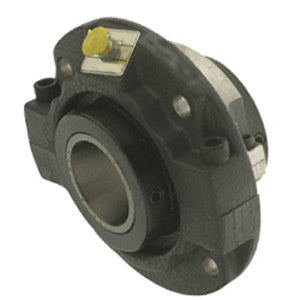

| title | RFPA 103 |
| price | $ 467.61 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 5.5 |
| Bore | 1.188 Inch | 30.175 Millimeter |
| EAN | 662288483434 |
| Other Features | Double Row | Heavy Duty | Single Collar | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.375 Inch | 60.325 Millimeter |
| Cartridge Pilot Diameter | 3.375 Inch | 85.725 Millimeter |
| Cartridge Pilot Depth | 0.875 Inch | 22.225 Millimeter |
| Bolt Spacing | 2.899 Inch | 73.635 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.1 Inch | 105 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | RCIA-103 |
| Housing Configuration | 2 Piece Split |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Pilot Configuration | With Pilot |
