Specifications

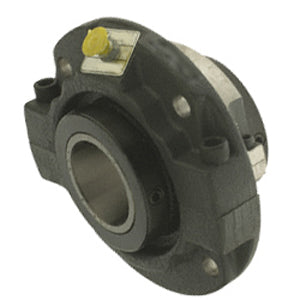

| title | RFP 80MM |
| price | $ 2,237.49 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Metric |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 42.6 |
| Bore | 3.15 Inch | 80 Millimeter |
| EAN | 662461287231 |
| Other Features | Double Row | Heavy Duty | Double Collar | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 5 Inch | 127 Millimeter |
| Cartridge Pilot Diameter | 7.374 Inch | 187.3 Millimeter |
| Cartridge Pilot Depth | 1.626 Inch | 41.3 Millimeter |
| Bolt Spacing | 6.081 Inch | 154.457 Millimeter |
| Nominal Bolt Circle Diameter Round | 8.6 Inch | 218.4 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | RCI-80MM |
| Housing Configuration | 2 Piece Split |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Pilot Configuration | With Pilot |
