Specifications

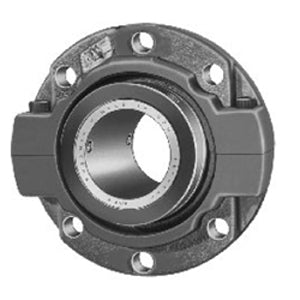

| title | RFP 500 |
| price | $ 5,638.82 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 115 |
| Bore | 5 Inch | 127 Millimeter |
| EAN | 662288480709 |
| Other Features | Double Row | Heavy Duty | Double Collar | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 13005 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 7.25 Inch | 184.15 Millimeter |
| Cartridge Pilot Diameter | 11 Inch | 279.4 Millimeter |
| Cartridge Pilot Depth | 2.88 Inch | 73.152 Millimeter |
| Bolt Spacing | 0 Inch | 0 Millimeter |
| Nominal Bolt Circle Diameter Round | 12.8 Inch | 325.1 Millimeter |
| Housing Style | 6 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 6 |
| Mounting Bolts | 7/8 Inch |
| Insert Part Number | RCI-500 |
| Housing Configuration | 2 Piece Split |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Pilot Configuration | With Pilot |
