FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

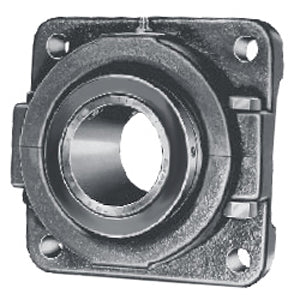

| title | RFB 104 |
| price | $ 380.82 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 6 |
| Bore | 1.25 Inch | 31.75 Millimeter |
| EAN | 662288480198 |
| Other Features | Double Row | Heavy Duty | Double Collar | Reduced Diameter Insert | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 553325 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.75 Inch | 69.85 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 2.875 Inch | 73.025 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.1 Inch | 105 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | RCI-104 |
| Housing Configuration | 2 Piece Split |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Pilot Configuration | No Pilot |
