Specifications

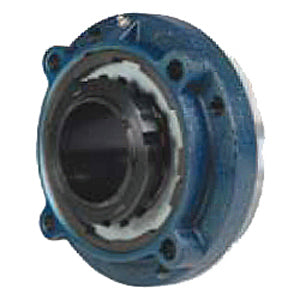

| title | QVVCW11V200SO |
| price | $ 570.84 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Inch |
| Brand | QM INDUSTRIES |
| Weight / LBS | 10 |
| Bore | 2 Inch | 50.8 Millimeter |
| EAN | 883450109802 |
| Other Features | Double Row | Double Nut |
| Relubricatable | Yes |
| Global Part Number GPN | 540782 |
| Mounting Method | V Lock |
| Length Thru Bore | 4.02 Inch | 102.1 Millimeter |
| Cartridge Pilot Diameter | 4.5 Inch | 114.3 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.8 Inch | 95.5 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.4 Inch | 138 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 7/16 Inch |
| Insert Part Number | 22211 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Urethane |
| Pilot Configuration | With Pilot |
