Specifications
| title | QVVC26V115SB |
| price | $ 3,428.21 / each |

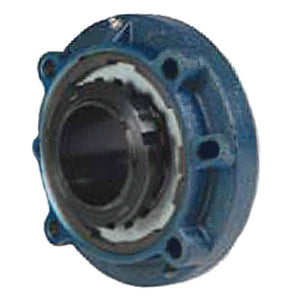

| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Metric |
| Brand | QM INDUSTRIES |
| Weight / LBS | 72 |
| Bore | 4.528 Inch | 115 Millimeter |
| EAN | 883450289610 |
| Other Features | Double Row | Double Nut |
| Relubricatable | Yes |
| Global Part Number GPN | 539736 |
| Mounting Method | V Lock |
| Length Thru Bore | 7.02 Inch | 178.3 Millimeter |
| Cartridge Pilot Diameter | 10.25 Inch | 260.35 Millimeter |
| Cartridge Pilot Depth | 1.9 Inch | 48.26 Millimeter |
| Bolt Spacing | 5.875 Inch | 149.225 Millimeter |
| Nominal Bolt Circle Diameter Round | 11.8 Inch | 300 Millimeter |
| Housing Style | 6 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 6 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | 22226 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | Double Lip Nitrile Rubber |
| Pilot Configuration | With Pilot |
