FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

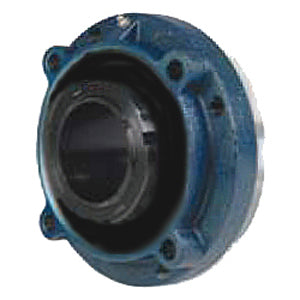

| title | QVFYP16V070SEN |
| price | $ 1,003.33 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Metric |
| Brand | QM INDUSTRIES |
| Weight / LBS | 28 |
| Bore | 2.756 Inch | 70 Millimeter |
| EAN | 883450990738 |
| Other Features | Double Row | Single Nut |
| Relubricatable | Yes |
| Mounting Method | V Lock |
| Length Thru Bore | 3.291 Inch | 83.6 Millimeter |
| Cartridge Pilot Diameter | 6.313 Inch | 160.35 Millimeter |
| Cartridge Pilot Depth | 0.188 Inch | 4.775 Millimeter |
| Bolt Spacing | 5.559 Inch | 141.2 Millimeter |
| Nominal Bolt Circle Diameter Round | 7.9 Inch | 200 Millimeter |
| Housing Style | 4 Bolt Round Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 20 Millimeter |
| Insert Part Number | 22216 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Steel |
| Expansion / Non-expansion | Expansion |
| Seals | Triple Lip Viton |
| Pilot Configuration | With Pilot |
