Specifications

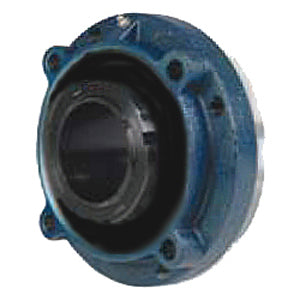

| title | QVFYP12V203SN |
| price | $ 594.47 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Inch |
| Brand | QM INDUSTRIES |
| Weight / LBS | 15 |
| Bore | 2.188 Inch | 55.575 Millimeter |
| EAN | 883450995610 |
| Other Features | Double Row | Single Nut |
| Relubricatable | Yes |
| Mounting Method | V Lock |
| Length Thru Bore | 3.14 Inch | 79.756 Millimeter |
| Cartridge Pilot Diameter | 5 Inch | 127 Millimeter |
| Cartridge Pilot Depth | 0.188 Inch | 4.775 Millimeter |
| Bolt Spacing | 4.51 Inch | 114.554 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.4 Inch | 162 Millimeter |
| Housing Style | 4 Bolt Round Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | 22212 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Viton |
| Pilot Configuration | With Pilot |
