QM INDUSTRIES

QM INDUSTRIES QVFKP22V100SEO

  • Write a review
  • FREE SHIPPING on orders over $100
    • $3,898.40 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications

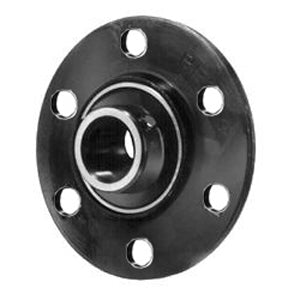

    title QVFKP22V100SEO
    price $ 4,586.35 / each
    Category Flange Block Bearings
    UNSPSC 31171501
    Harmonized Tariff Code 8483.20.40.80
    Manufacturer Name QM INDUSTRIES
    Inch - Metric Metric
    Brand QM INDUSTRIES
    Weight / LBS 55
    Bore 3.937 Inch | 100 Millimeter
    EAN 883450970549
    Other Features Double Row | Single Nut
    Relubricatable Yes
    Mounting Method V Lock
    Length Thru Bore 4.13 Inch | 104.9 Millimeter
    Cartridge Pilot Diameter 10.375 Inch | 263.53 Millimeter
    Cartridge Pilot Depth 0.188 Inch | 4.775 Millimeter
    Bolt Spacing 6.642 Inch | 168.7 Millimeter
    Nominal Bolt Circle Diameter Round 12.9 Inch | 327.7 Millimeter
    Housing Style 6 Bolt Round Flange Block
    Number of Mounting Holes 6
    Mounting Bolts 24 Millimeter
    Insert Part Number 22222
    Housing Configuration 1 Piece Solid
    Housing Material Cast Steel
    Expansion / Non-expansion Expansion
    Seals Triple Lip Urethane
    Pilot Configuration With Pilot
