Specifications
| title | QVCW16V070SEN |
| price | $ 1,132.71 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Metric |
| Brand | QM INDUSTRIES |
| Weight / LBS | 22 |
| Bore | 2.756 Inch | 70 Millimeter |
| EAN | 883450214155 |
| Other Features | Double Row | Single Nut |
| Relubricatable | Yes |
| Global Part Number GPN | 536915 |
| Mounting Method | V Lock |
| Length Thru Bore | 3.29 Inch | 83.566 Millimeter |
| Cartridge Pilot Diameter | 6.457 Inch | 164 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.3 Inch | 134.7 Millimeter |
| Nominal Bolt Circle Diameter Round | 7.5 Inch | 190 Millimeter |

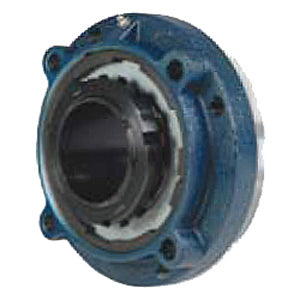

| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | 22216 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Steel |
| Expansion / Non-expansion | Expansion |
| Seals | Triple Lip Viton |
| Pilot Configuration | With Pilot |
