Specifications

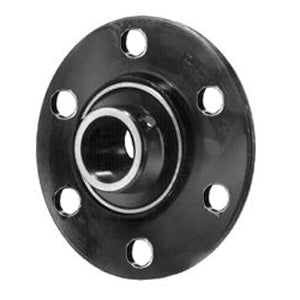

| title | QMFX22J408SO |
| price | $ 3,101.54 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Inch |
| Brand | QM INDUSTRIES |
| Weight / LBS | 55 |
| Bore | 4.5 Inch | 114.3 Millimeter |
| EAN | 883450257282 |
| Other Features | Double Row |
| Relubricatable | Yes |
| Global Part Number GPN | 538380 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 5.53 Inch | 140.462 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 6.44 Inch | 163.576 Millimeter |
| Nominal Bolt Circle Diameter Round | 12.9 Inch | 327.7 Millimeter |
| Housing Style | 6 Bolt Round Flange Block |
| Number of Mounting Holes | 6 |
| Mounting Bolts | 1 Inch |
| Insert Part Number | 22222 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Urethane |
| Pilot Configuration | No Pilot |
