Specifications
| title | QAFY18A090SEB |
| price | $ 1,046.36 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Metric |
| Brand | QM INDUSTRIES |
| Weight / LBS | 42 |
| Bore | 3.543 Inch | 90 Millimeter |
| EAN | 883450042147 |
| Other Features | Double Row | Single Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 531518 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4.03 Inch | 102.362 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 6.72 Inch | 170.7 Millimeter |
| Nominal Bolt Circle Diameter Round | 9.5 Inch | 241 Millimeter |

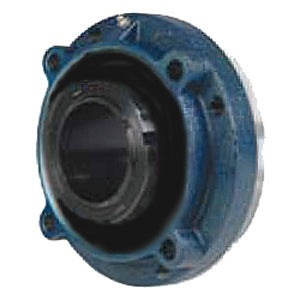

| Housing Style | 4 Bolt Round Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 7/8 Inch |
| Insert Part Number | 22218 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Steel |
| Expansion / Non-expansion | Expansion |
| Seals | Double Lip Nitrile Rubber |
| Pilot Configuration | No Pilot |
