Specifications

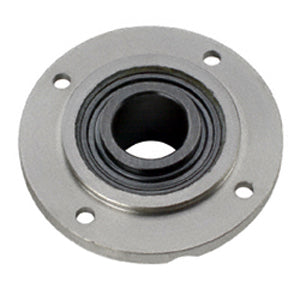

| title | PVR-1127 |
| price | $ 405.51 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 7.5 |
| Bore | 2.188 Inch | 55.575 Millimeter |
| EAN | 662461301425 |
| Other Features | Single Row | Heavy Duty | Rotating Shield | End Cap |
| Relubricatable | Yes |
| Global Part Number GPN | 553430 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.188 Inch | 55.575 Millimeter |
| Cartridge Pilot Diameter | 4.5 Inch | 114.3 Millimeter |
| Cartridge Pilot Depth | 0.594 Inch | 15.088 Millimeter |
| Bolt Spacing | 3.8 Inch | 95.5 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.4 Inch | 138 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 7/16 Inch |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Nomex Felt |
| Pilot Configuration | With Pilot |
