Specifications
| title | MUCFT208-24NPRF |
| price | $ 301.99 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 1.598 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 0.06 |
| Bore | 1.5 Inch | 38.1 Millimeter |
| EAN | 0808250248544 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 534913 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.937 Inch | 49.2 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.656 Inch | 143.67 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.7 Inch | 144 Millimeter |

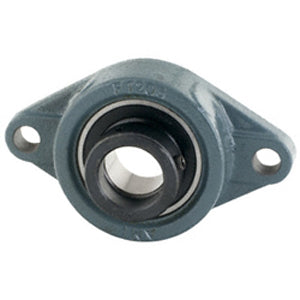

| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | MUC208-24 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Nickel Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Double Lip Contact |
| Pilot Configuration | No Pilot |
