AMI BEARINGS

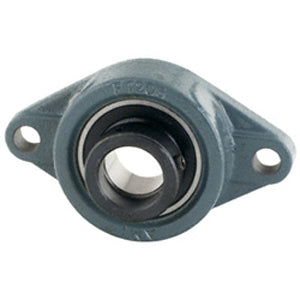

AMI BEARINGS MUCFT203NP

  • Write a review
  • FREE SHIPPING on orders over $100
    • $112.17 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title MUCFT203NP
    price $ 131.97 / each
    Category Flange Block Bearings
    UNSPSC 31171501
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name ASAHI BEARINGS
    Weight / kgm 0.377
    Inch - Metric Metric
    Brand AMI BEARINGS
    Weight / LBS 0.4
    Bore 0.669 Inch | 17 Millimeter
    EAN 0808250186723
    Other Features Single Row | Spherical | Normal Duty
    Relubricatable Yes
    Global Part Number GPN 534899
    Mounting Method Set Screw
    Length Thru Bore 1.22 Inch | 31 Millimeter
    Cartridge Pilot Diameter 0 Inch | 0 Millimeter
    Cartridge Pilot Depth 0 Inch | 0 Millimeter
    Bolt Spacing 3 Inch | 76.2 Millimeter
    Nominal Bolt Circle Diameter Round 3 Inch | 76 Millimeter
    Housing Style 2 Bolt Flange Block
    Number of Mounting Holes 2
    Mounting Bolts 8 Millimeter
    Insert Part Number MUC203
    Housing Configuration 1 Piece Solid
    Housing Material Nickel Coated Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals Contact Seal
    Pilot Configuration No Pilot
