FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

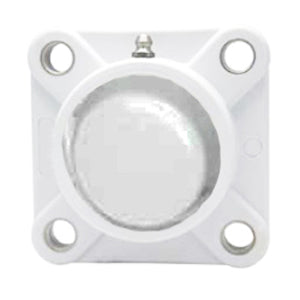

| title | MUCFPL206-19CEW |
| price | $ 201.17 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.513 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 1.12 |
| Bore | 1.188 Inch | 30.175 Millimeter |
| EAN | 0808250317134 |
| Other Features | Single Row | Spherical | Normal Duty | White Housing | Closed End | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 528736 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.5 Inch | 38.1 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.25 Inch | 82.55 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.7 Inch | 120 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | MUC206-19 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
