FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

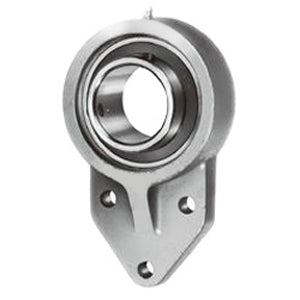

| title | MUCFB207-23TC |
| price | $ 242.80 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 1.553 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 2.9 |
| Bore | 1.438 Inch | 36.525 Millimeter |
| EAN | 0808250296910 |
| Other Features | Single Row | Spherical | Normal Duty | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 532134 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.689 Inch | 42.9 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 1.25 Inch | 31.75 Millimeter |
| Nominal Bolt Circle Diameter Round | 0 Inch | 0 Millimeter |
| Housing Style | 3 Bolt Flange Bracket |
| Number of Mounting Holes | 3 |
| Mounting Bolts | 7/16 Inch |
| Insert Part Number | MUC207-23 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Teflon Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
