Specifications

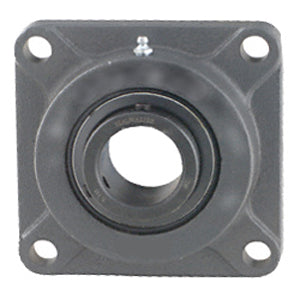

| title | MSFD-80 |
| price | $ 6,210.58 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 115 |
| Bore | 5 Inch | 127 Millimeter |
| EAN | 662461016916 |
| Other Features | Single Row | Medium Duty | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 12373 |
| Mounting Method | Set Screw |
| Length Thru Bore | 5.75 Inch | 146.05 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 10 Inch | 254 Millimeter |
| Nominal Bolt Circle Diameter Round | 14.1 Inch | 358.1 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1-9/32 Inch |
| Insert Part Number | 2-5D |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Pilot Configuration | No Pilot |
