Specifications

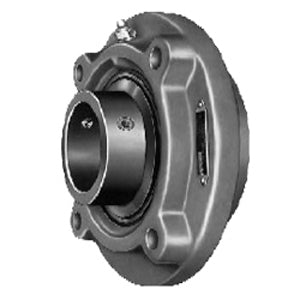

| title | MFCH-24C CR |
| price | $ 438.58 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 6 |
| Bore | 1.5 Inch | 38.1 Millimeter |
| EAN | 662461306321 |
| Other Features | Single Row | Medium Duty | Corrosion Resistant | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 558788 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.938 Inch | 49.225 Millimeter |
| Cartridge Pilot Diameter | 4.25 Inch | 107.95 Millimeter |
| Cartridge Pilot Depth | 0.438 Inch | 11.125 Millimeter |
| Bolt Spacing | 3.6 Inch | 91.9 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.1 Inch | 130 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | 3-18C-CR |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | With Pilot |
