Specifications

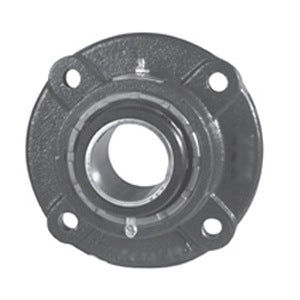

| title | MB2208 |
| price | $ 704.07 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 7.446 |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 16.4 |
| Bore | 2.5 Inch | 63.5 Millimeter |
| EAN | 0698210636081 |
| Other Features | Double Row | Single Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 552820 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.5 Inch | 88.9 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 4.766 Inch | 121.06 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.8 Inch | 171.5 Millimeter |
| Housing Style | 4 Bolt Round Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | 2208U |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Heavy Contact |
| Pilot Configuration | No Pilot |
