FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

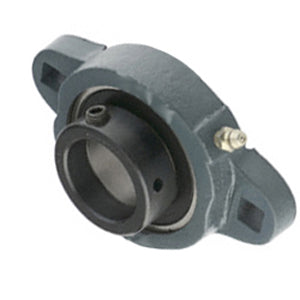

| title | LFT-SXV-107 |
| price | $ 82.79 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 0.83 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 1.83 |
| Bore | 1.438 Inch | 36.525 Millimeter |
| Other Features | Single Row | Intermediate Duty | Narrow Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 552264 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.531 Inch | 38.9 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.938 Inch | 100.025 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.9 Inch | 99 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 13/32 Inch |
| Insert Part Number | INS-SXV-107 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
