Specifications

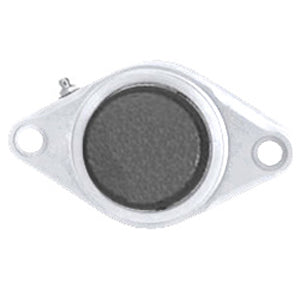

| title | KLFXSS224DBLK |
| price | $ 351.63 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 2 |
| Bore | 1.5 Inch | 38.1 Millimeter |
| EAN | 793699755206 |
| Other Features | Single Row | Spherical | Intermediate Duty | White Housing | Open End | Extended Inner Race | Food Grade Lubrication |
| Relubricatable | Yes |
| Global Part Number GPN | 559128 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.688 Inch | 42.87 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.67 Inch | 144.018 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.7 Inch | 144 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | SG224EL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
