Specifications

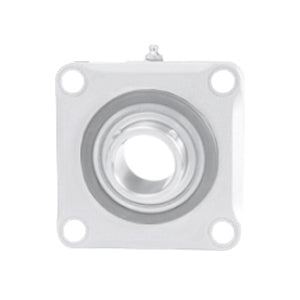

| title | KLFS216E |
| price | $ 107.77 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 0.9 |
| Bore | 1 Inch | 25.4 Millimeter |
| EAN | 662327991715 |
| Other Features | Single Row | Spherical | Intermediate Duty | White Housing | Open End | Extended Inner Race | Food Grade Lubrication |
| Relubricatable | Yes |
| Global Part Number GPN | 556669 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.172 Inch | 29.77 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 2.76 Inch | 70.104 Millimeter |
| Nominal Bolt Circle Diameter Round | 4 Inch | 101.6 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | SG216EL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
