FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

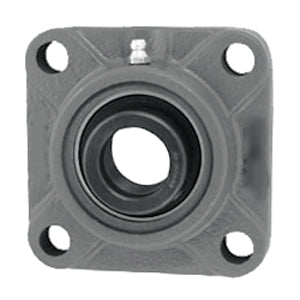

| title | HUCNPF 209 45MM |
| price | $ 131.52 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI |
| Inch - Metric | Metric |
| Brand | IPTCI |
| Weight / LBS | 5.2 |
| Bore | 1.772 Inch | 45 Millimeter |
| Other Features | Single Row | Spherical | Black Oxide Finish | Specially Heat Treated Ring | High Temperature Range From -45 to 450 Degre |
| Relubricatable | Yes |
| Global Part Number GPN | 548063 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.937 Inch | 49.2 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 4.134 Inch | 105 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.8 Inch | 148 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 9/16 Inch |
| Insert Part Number | HUC209 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Nickel Coated Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | B Seal |
| Pilot Configuration | No Pilot |
