IPTCI

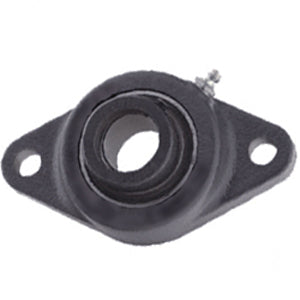

IPTCI HUCFL 209 45MM

  • Write a review
  • FREE SHIPPING on orders over $100
    • $70.38 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title HUCFL 209 45MM
    price $ 82.80 / each
    Category Flange Block Bearings
    UNSPSC 31171501
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name IPTCI
    Inch - Metric Metric
    Brand IPTCI
    Weight / LBS 4.4
    Bore 1.772 Inch | 45 Millimeter
    Other Features Single Row | Spherical | Black Oxide Finish | Specially Heat Treated Ring | High Temperature Range From -45 to 450 Degre
    Relubricatable Yes
    Global Part Number GPN 547906
    Mounting Method Set Screw
    Length Thru Bore 1.937 Inch | 49.2 Millimeter
    Cartridge Pilot Diameter 0 Inch | 0 Millimeter
    Cartridge Pilot Depth 0 Inch | 0 Millimeter
    Bolt Spacing 5.843 Inch | 148.4 Millimeter
    Nominal Bolt Circle Diameter Round 5.8 Inch | 148 Millimeter
    Housing Style 2 Bolt Flange Block
    Number of Mounting Holes 2
    Mounting Bolts 1/2 Inch
    Insert Part Number HUC209
    Housing Configuration 1 Piece Solid
    Housing Material Cast Iron
    Expansion / Non-expansion Expansion
    Seals B Seal
    Pilot Configuration No Pilot
