Specifications

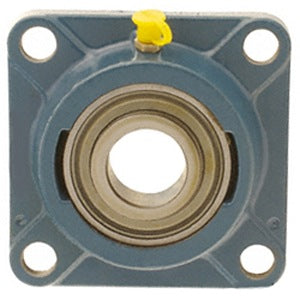

| title | FY 40 TF |
| price | $ 151.11 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | SKF |
| Weight / kgm | 1.902 |
| Inch - Metric | Metric |
| Brand | SKF |
| Weight / LBS | 4.19 |
| Bore | 1.575 Inch | 40 Millimeter |
| EAN | 7316577035936 |
| Other Features | Single Row | Standard Duty | Wide Inner Race | Open End | Has Flinger | Y Bearing |
| Relubricatable | Yes |
| Global Part Number GPN | 554942 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.937 Inch | 49.2 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.996 Inch | 101.5 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.7 Inch | 144 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 12 Millimeter |
| Insert Part Number | YAR 208-2F |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | M Seal |
| Pilot Configuration | No Pilot |
