Specifications

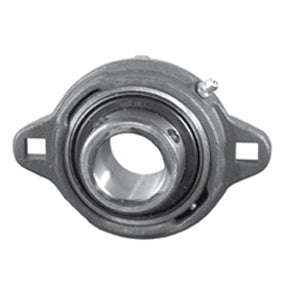

| title | FXRUG216NK75 |
| price | $ 142.73 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 1 |
| Bore | 1 Inch | 25.4 Millimeter |
| EAN | 662327994228 |
| Other Features | Single Row | Spherical | Standard Duty | Wide Inner Race | Inboard Mount |
| Relubricatable | Yes |
| Global Part Number GPN | 556118 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.359 Inch | 34.53 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3 Inch | 76.2 Millimeter |
| Nominal Bolt Circle Diameter Round | 3 Inch | 76 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 5/16 Inch |
| Insert Part Number | UG216NL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Nickel Coated High Test Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
