Specifications

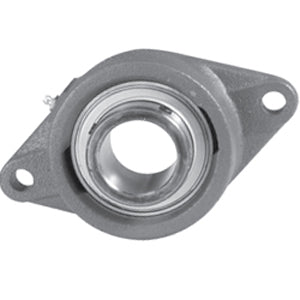

| title | FX3Y235E3 |
| price | $ 311.66 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 8 |
| Bore | 2.188 Inch | 55.575 Millimeter |
| EAN | 662327035334 |
| Other Features | Single Row | Spherical | Standard Duty | Wide Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 244258 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.813 Inch | 71.45 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 7.25 Inch | 184.15 Millimeter |
| Nominal Bolt Circle Diameter Round | 7.3 Inch | 184.2 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | YG235E3L |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Contact |
| Pilot Configuration | No Pilot |
