Specifications

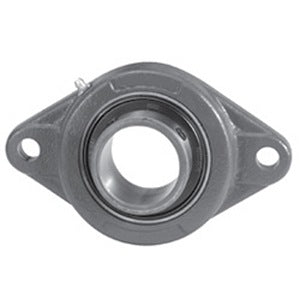

| title | FX3S230E |
| price | $ 116.82 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 4.43 |
| Bore | 1.875 Inch | 47.625 Millimeter |
| EAN | 662864716772 |
| Other Features | Single Row | Standard Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 559727 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.813 Inch | 46.05 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 6.188 Inch | 157.175 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.2 Inch | 157 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 9/16 Inch |
| Insert Part Number | MB251-78-PA |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
