Specifications

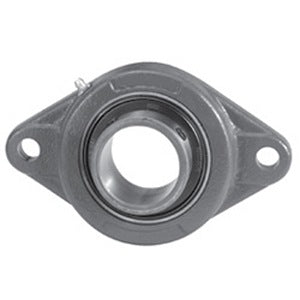

| title | FX3S210MHFFK5 |
| price | $ 60.90 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 0.77 |
| Bore | 0.625 Inch | 15.875 Millimeter |
| EAN | 662864717984 |
| Other Features | Single Row | Standard Duty | 10% Grease Fill | Flingers Only |
| Relubricatable | Yes |
| Global Part Number GPN | 559747 |
| Mounting Method | Set Screw |
| Length Thru Bore | 0.984 Inch | 25 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3 Inch | 76.2 Millimeter |
| Nominal Bolt Circle Diameter Round | 3 Inch | 76 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | MB25-58-MHFFPA |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Free Running MHFF |
| Pilot Configuration | No Pilot |
