Specifications

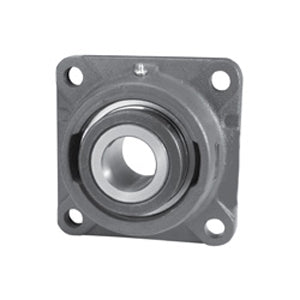

| title | FEU326 |
| price | $ 587.49 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 10.2 |
| Bore | 1.625 Inch | 41.275 Millimeter |
| EAN | 662327734831 |
| Other Features | Single Row | Spherical | Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 244872 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.594 Inch | 65.888 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 4.875 Inch | 123.825 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.9 Inch | 175.3 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | UG326L |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | Steel Clad Clearance |
| Pilot Configuration | No Pilot |
