Specifications

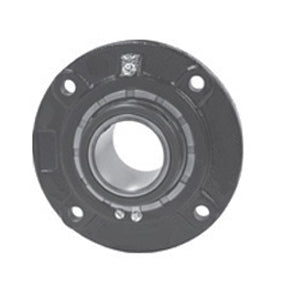

| title | FCB224M50HK6 |
| price | $ 605.72 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Metric |
| Brand | LINK BELT |
| Weight / LBS | 9.48 |
| Bore | 1.969 Inch | 50 Millimeter |
| EAN | 793699708561 |
| Other Features | Double Row | Single Collar | Extended Inner Race | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 559066 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.125 Inch | 79.38 Millimeter |
| Cartridge Pilot Diameter | 4.488 Inch | 114 Millimeter |
| Cartridge Pilot Depth | 0.874 Inch | 22.2 Millimeter |
| Bolt Spacing | 3.795 Inch | 96.4 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.4 Inch | 138 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 10 Millimeter |
| Insert Part Number | B224M50HL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Floating Labyrinth |
| Pilot Configuration | With Pilot |
