FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

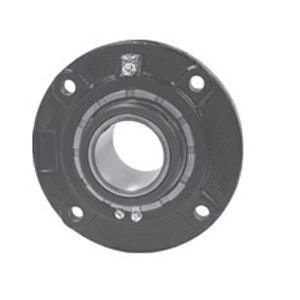

| title | FCB224M35H |
| price | $ 484.49 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Metric |
| Brand | LINK BELT |
| Weight / LBS | 5.732 |
| Bore | 1.378 Inch | 35 Millimeter |
| EAN | 662327707002 |
| Other Features | Double Row | Single Collar | Extended Inner Race | With Set Screw |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.875 Inch | 73.02 Millimeter |
| Cartridge Pilot Diameter | 3.622 Inch | 92 Millimeter |
| Cartridge Pilot Depth | 1.374 Inch | 34.9 Millimeter |
| Bolt Spacing | 3.094 Inch | 78.6 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.4 Inch | 111 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 10 Millimeter |
| Insert Part Number | B224M35HL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Floating Labyrinth |
| Pilot Configuration | With Pilot |
