Specifications

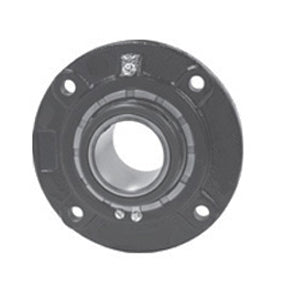

| title | FCB22423H |
| price | $ 321.40 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 2.724 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 6 |
| Bore | 1.438 Inch | 36.525 Millimeter |
| EAN | 0662327027223 |
| Other Features | Double Row | Single Collar | Extended Inner Race | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 559021 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.875 Inch | 73.02 Millimeter |
| Cartridge Pilot Diameter | 3.625 Inch | 92.08 Millimeter |
| Cartridge Pilot Depth | 0.75 Inch | 19.05 Millimeter |
| Bolt Spacing | 3.094 Inch | 78.6 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.4 Inch | 111 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | B22423HL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Floating Labyrinth |
| Pilot Configuration | With Pilot |
