Specifications

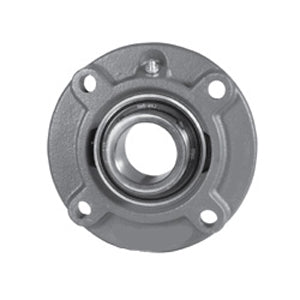

| title | FC3U2M25N |
| price | $ 170.14 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Metric |
| Brand | LINK BELT |
| Weight / LBS | 2.976 |
| Bore | 0.984 Inch | 25 Millimeter |
| EAN | 793699074208 |
| Other Features | Single Row | Spherical | Standard Duty | Wide Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 556520 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.359 Inch | 34.53 Millimeter |
| Cartridge Pilot Diameter | 3 Inch | 76.2 Millimeter |
| Cartridge Pilot Depth | 0.5 Inch | 12.7 Millimeter |
| Bolt Spacing | 2.563 Inch | 65.1 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.6 Inch | 90.5 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 10 Millimeter |
| Insert Part Number | UG2M25NL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | With Pilot |
